Coachman®

5/5

Authentic looking insulated steel and composite carriage house garage doors.

The perfect blend of beauty and practicality, these carriage house doors look like wood, but they are actually crafted of multiple layers of durable, low-maintenance steel and insulation topped with a woodgrain textured composite overlay.

Overview

Coachman® garage doors feature the charming appearance of an old-fashioned swing-out carriage house door, but offer the built-in convenience of a modern overhead garage door. Throughout the design and construction, there is a recurring blend of beauty and practicality that is evident in the details, like the attractive yet durable steel and composite construction.

CONSTRUCTION OVERVIEW

  • Steel carriage house doors with 4-layer construction.
  • Insulation options include 2″ Intellicore® polyurethane, 2″ polystyrene or 1-3/8″ polystyrene insulation. The R-values of these garage doors range from 6.5 to 18.4.
  • The steel skins of these doors are protected by the use of a tough, layered coating system, which includes a hot-dipped galvanized layer and baked-on primer and top coat.
  • WINDCODE® door reinforcement product available for high wind load applications.

DESIGN OVERVIEW

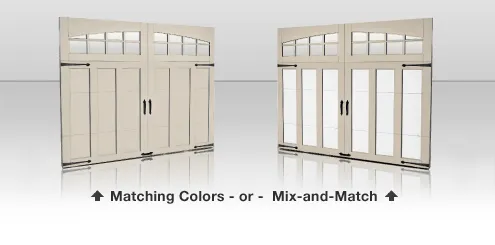

  • Four factory finish paint and overlay colors. Overlay and base colors can be mixed to achieve desired look.
  • Many glass options, including clear, seeded, rain, obscure, frosted and insulated.
  • Attractive beveled edge clip-in window grilles are removable for easy cleaning.
  • Comes complete with spade lift handles and step plates. Additional decorative hardware options available.

ENVIRONMENTAL ASSURANCE

Clopay doors are compliant with environmental laws and regulations. Clopay doors do not contain HFCs. All Clopay doors are compliant with:

  • California SB 1013
  • Washington HB 1112 – Hydrofluorocarbon Greenhouse Gas Emissions
  • Canadian regulations amending the ozone-depleting substances and halocarbon alternatives regulations
  • New Jersey A-5583/S-3919 – Greenhouse Gas Bill

LIFTMASTER® ELITE SERIES™

Clopay Recommends LiftMaster® Elite Series® openers for these garage doors. These openers have a range of features that truly make lives easier.

Design Options

Customize your Clopay® Canyon Ridge® Louver garage door to make it your own. Designs, colors and windows create the perfect look. Choose Mahogany Louver cladding and pair it with either Mahogany or Clear Cypress overlays. If you are in search of more color options, our ColorBlast® program allows you to select from hundreds of Sherwin-Williams® color options or mix the perfect custom color.

DOOR DESIGNS

SERIES 1

SERIES 2

SERIES 3

SERIES 4

TOP SECTIONS

SOLID TOP SECTIONS

WINDOW DESIGNS

Double top sections

SPECIALTY GLASS OPTIONS

COLORS

HARDWARE DESIGNS

HANDLES

HINGES

PLATES

Construction

Safe-T Bracket®

  • Replaceable vinyl bottom weather seal in rust free aluminum retainer helps protect against the elements.
  • Grilles are removable for easy cleaning.
  • Safe-T-Bracket® – Prevents serious injury that could occur if the bottom bracket were removed with the garage door closed and under tension.
  • Rust-Prevention System – Steel skins are protected through a tough, layered coating system, including a hot-dipped galvanized layer, a protective metal oxide pre-treatment and a baked on primer and top coat.
  • Door sample shown in Standard White.
  • Product complies with 2015 IECC air infiltration requirement of 0.40 cfm/ft2 or less (IECC, Section C402.5.2)

Video

Coachman Overview. Watch Gary Sullivan talk about Coachman garage doors, which offers the look and beauty of carriage house garage doors with the additional benefits of weather resistance, energy efficiency and low maintenance.
